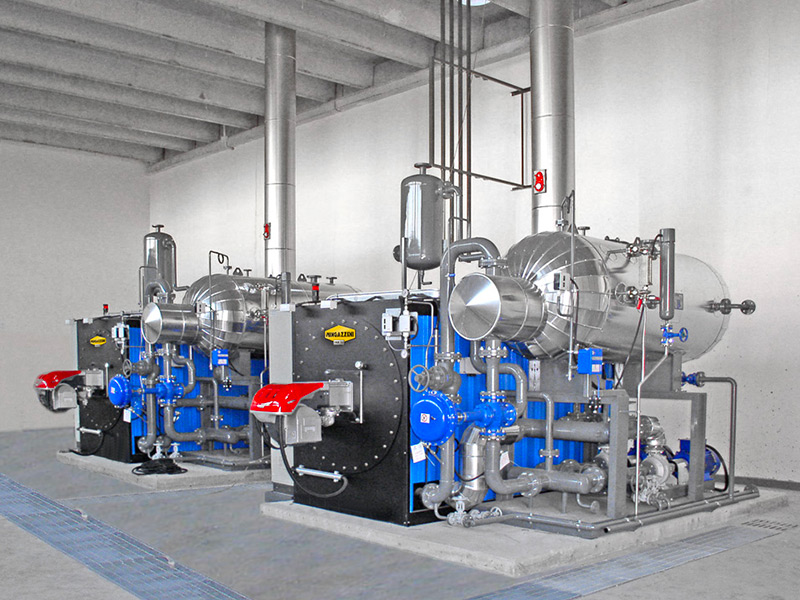

Thermal fluid heaters PT Series
The horizontal thermal fluid heater is made entirely of high quality pipe, shaped and assembled so as to create a large combustion chamber and successive concentric sections. Such a heater can be combined with an unfired steam generator with output from 500 to 20,000 kg/h and rated pressure from 6 to 25 bar, complete with all necessary accessories.
Datasheet
| Output: | from 200.000 kcal/h to 12.000.000 kcal/h |
| Maximum temperature of thermal fluid: | 300 °C |
| Standard efficiency: | 88% |
| Efficiency with energy recovery systems: | up to 94% |
Features
Low emissions of NOx and CO
The multiple coils making up the heat generator body are hydraulically balanced in order to assure the correct circulation speed along every section of the tubular structure.
The absence of refractory material exposed to fire and the low specific thermal loads used assure an extremely long duration of the oil fill, the absence of cracking phenomena and a very low thermal inertia in case of accidental stops of the circulation pump.
